From 3D Scanning to Path Planning
Features

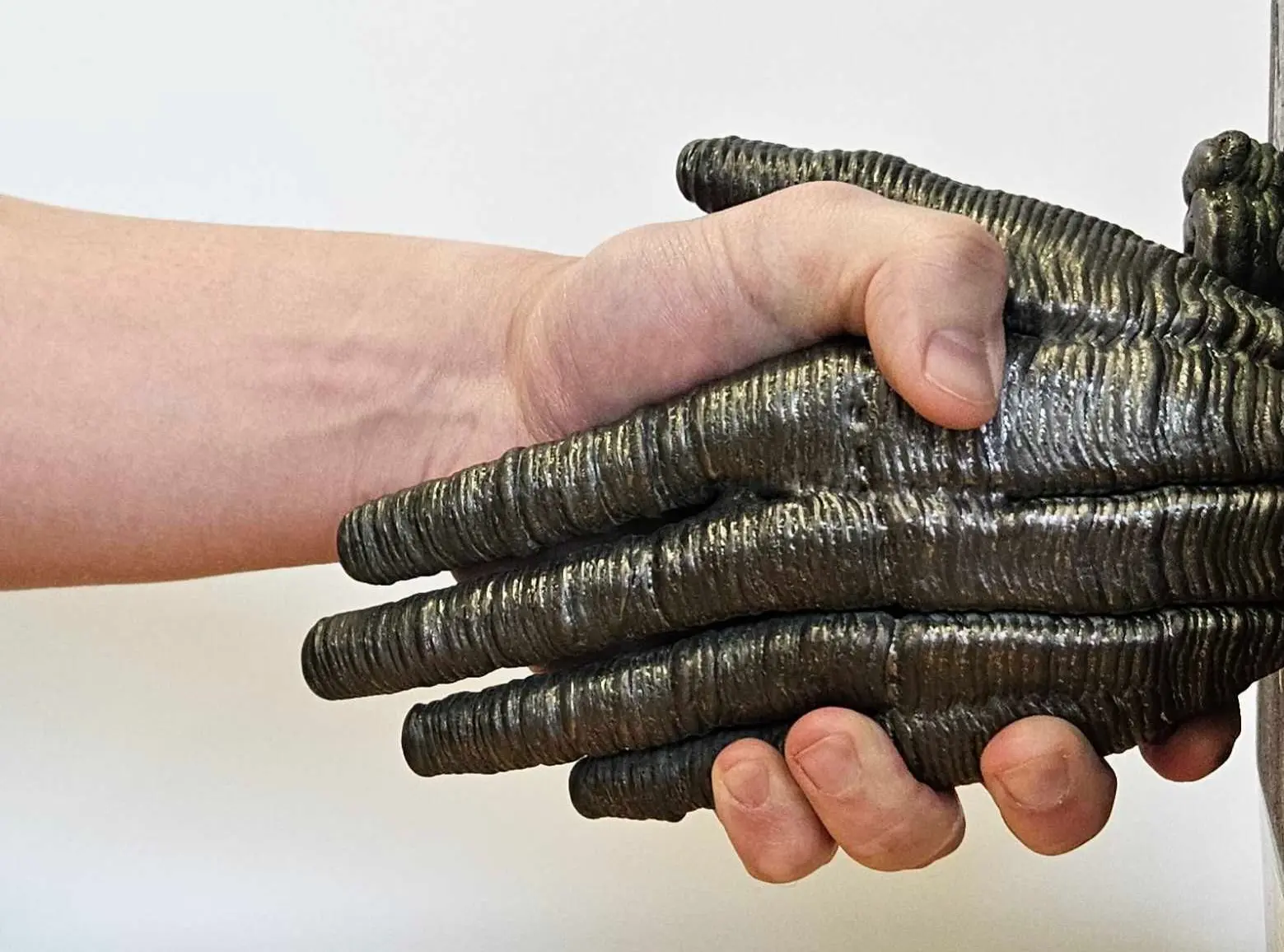

- 3 to 6 DOF path planning for Additive Manufacturing
- 3 to 6 DOF path planning for Machining & Surfacing
- Automated 3D model registration
- Automated CNC repair strategy computation
- Programming-Free Robotic Path Planning

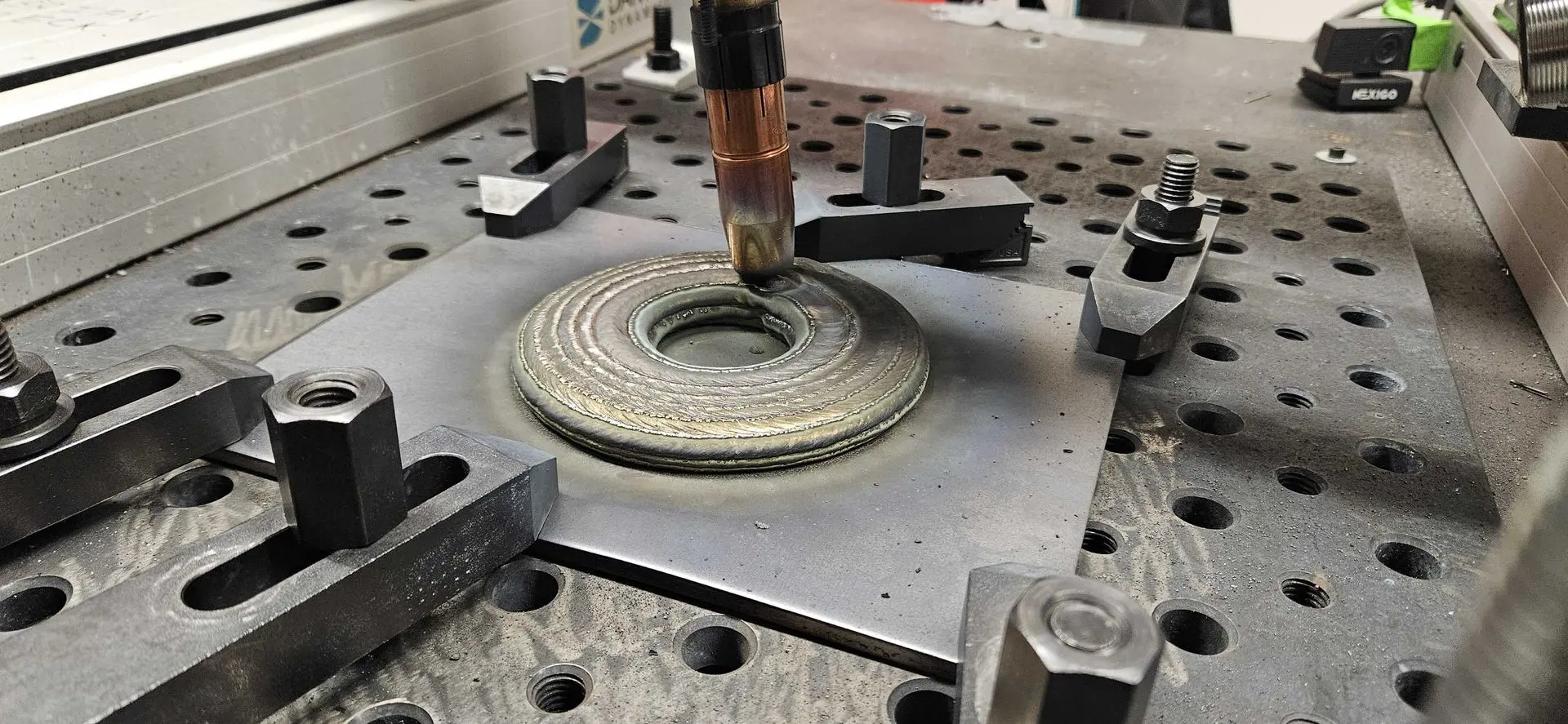

- Automated Robotic Welding Path Planning
- Automated Overlay and Coating Path Planning
- In-situ and collision-avoidance Path Computation
- Large-scale Polymer 3D printing using pellet extrusion
- Automated Registration
- Deviation Analysis
- Measurement Tools
HYBRID MANUFACTURING & REPAIR
3D SCAN
Automatically create a digital copy of exisiting equipment
COMPARE
Compare the digital copy with a reference model (CAD, basic geometry, nominal scan)
IDENTIFY
Identify the areas of interest
PROCESS
Create a repair strategy tht includes pre-machining, additive manufacturing and surfacing
Dimensional Repair
Automated hybrid repair of a damaged propeller, including pre-machining, additive manufacturing and surfacing.
Surfacing Repair
Unlike dimensional repair, surfacing repair utilizes only the data obtained from the scan of the damaged part for the repair, making it ideal for planar and cylindrical repairs. This video demonstrates the repair procedure of a damaged steel plate serving as the floor for a mining truck bed.

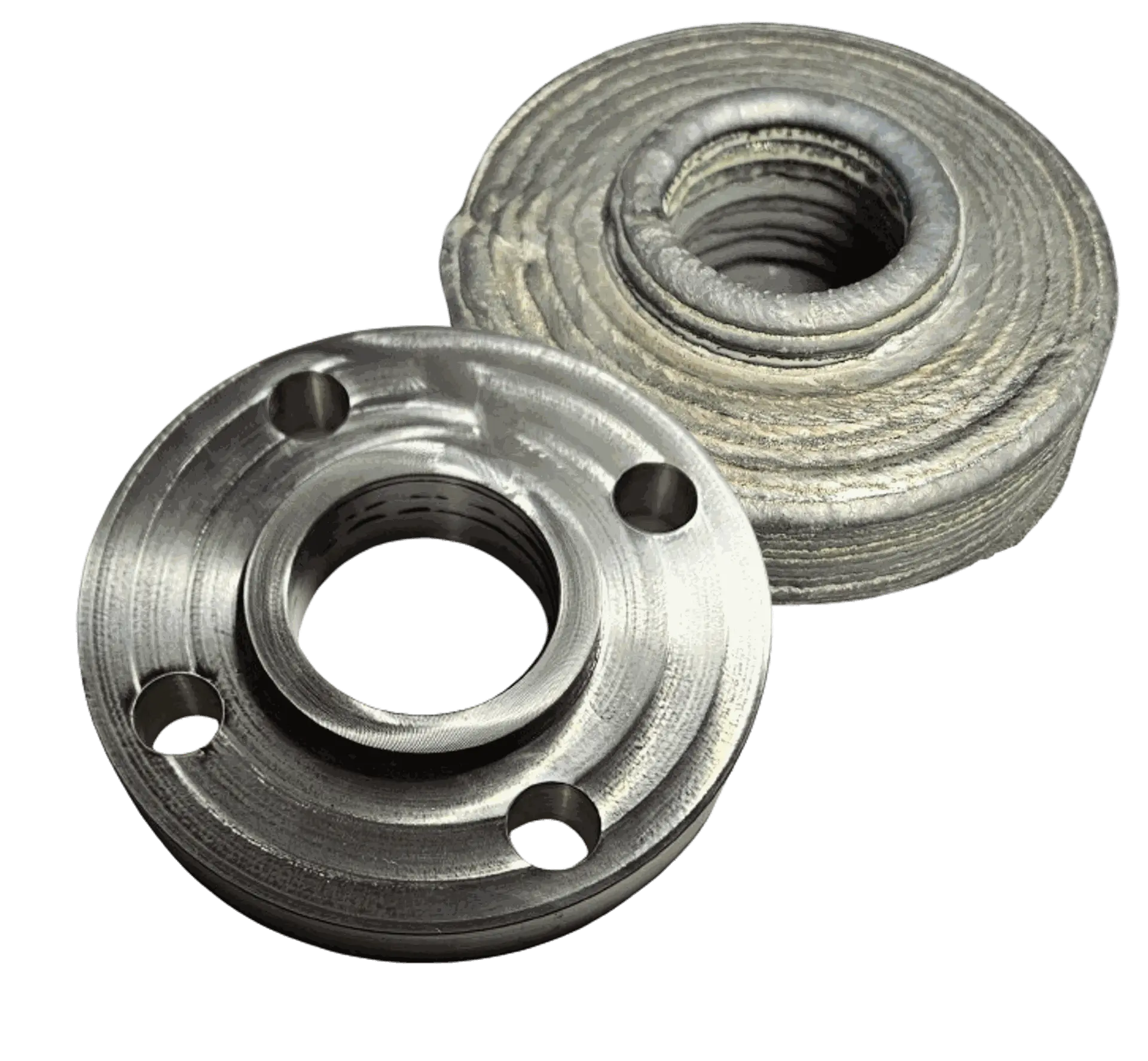

Hybrid Manufacturing
This video introduces a collaborative initiative with the ADAMS lab at the University of Alberta, delving into rapid investment casting using hybrid manufacturing. The primary objective is to expedite the production of a sacrificial wax model for future metal casting applications.
CODELESS ROBOTIC PATH PLANNING
SCAN
3D scan the area of interest
DRAW
Draw the path or select the region where the path should be created
LOAD
Automatically create a robotic path with collision avoidance
EXECUTE
Execute the path on your robotic cell

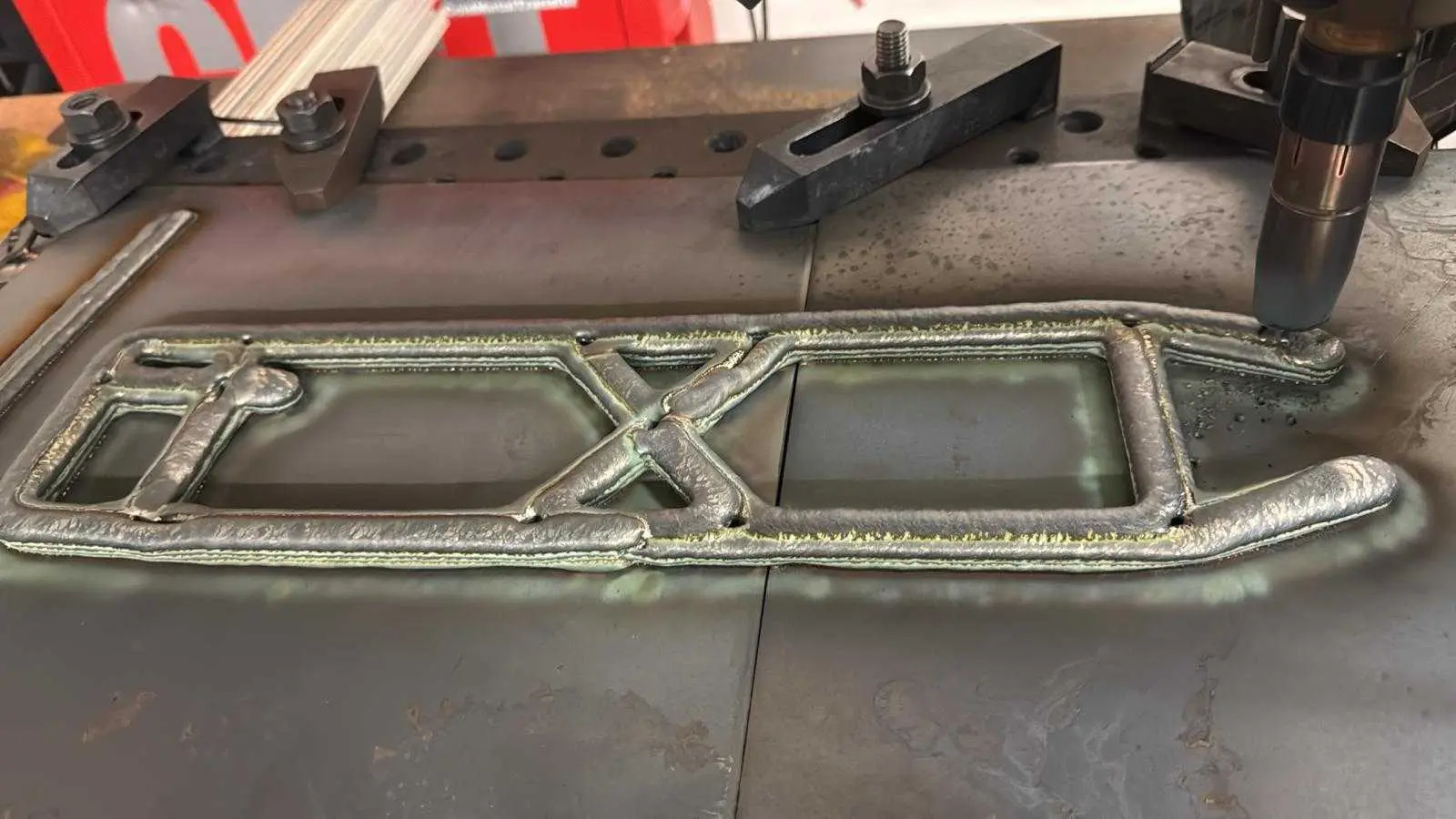

Robotic Welding on ABB Robot
Element X offers a solution for in-situ robotic welding and overlay. Leveraging RoboDK as third-party robotic simulation software, Elementiam has created a programming-free toolchain for rapid and versatile robotic welding operations.
AI-based Welding on Yaskawa Robot
Automated welding area identification and path planning computation.
AI-based Path Planning on ABB Robot
Automated welding area identification and path planning computation.
LARGE-SCALE ADDITIVE MANUFACTURING

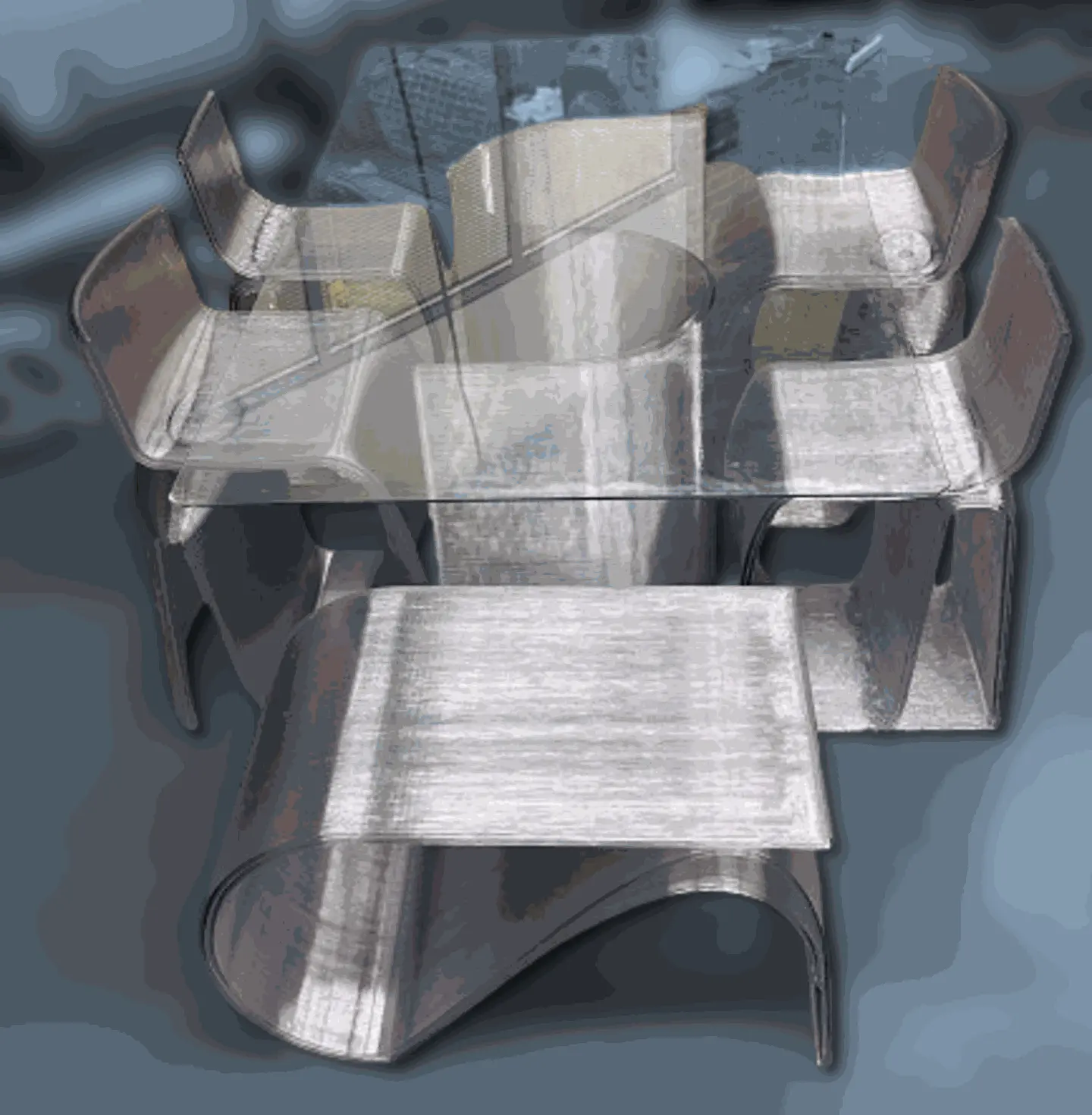

Furniture printing
Large Scale 3D printing of various components and items using pellet extrusion process
API and 3D printing
Element X offers an advanced API for complex 3D printing, including multi-planar, non-planar and conformal slicing strategies.
